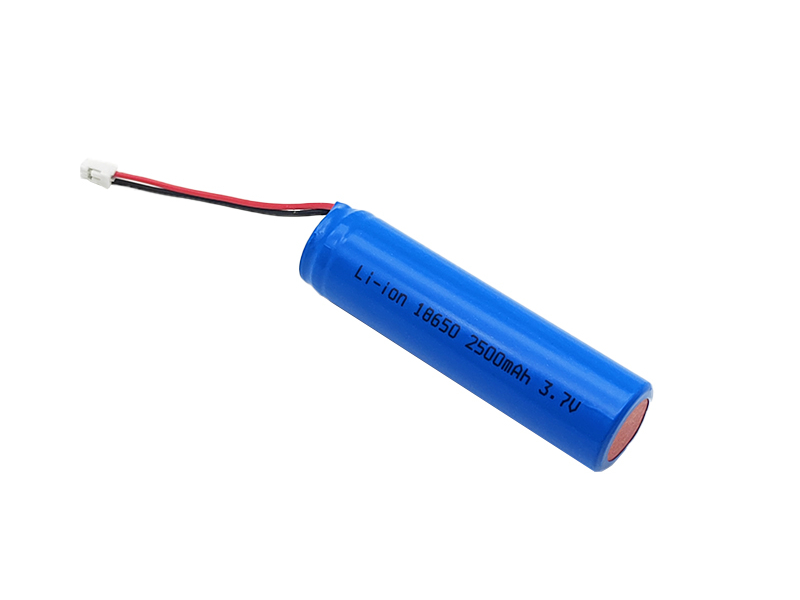

3.7V 2500mAh wide temperature cylindrical lithium battery -2pin
3.7V cylindrical lithium battery Product model: XL 3.7V 2500mAh
3.7V cylindrical lithium battery technical parameters (specifically can be designed according to customer requirements - voltage/capacity/size/circuit)
  Single battery model: 18650
  Packing: industrial PVC heat shrinkable film
Working temperature: -40~85℃

Description

3.7V cylindrical lithium battery Product model: XL 3.7V 2500mAh
3.7V cylindrical lithium battery technical parameters (specifically can be designed according to customer requirements - voltage/capacity/size/circuit)

Single battery model: 18650
 · Single battery voltage: 3.7V
 · Nominal voltage after battery pack combination: 3.7V
 · Single battery capacity: 2.5Ah
 · Battery combination: 1 series and 1 parallel
 · Battery voltage range after combination: 3.0V~4.2V
 · Combined battery capacity: 2.5Ah
 Battery pack power: 9.25W
 · Battery pack size: 20*20*69mm
 · Maximum discharge current: <2.5A
 · Instantaneous discharge current: 5A~7.5A
 · Maximum charging current: 0.2-2C
 · Charge and discharge times: > 500 times
 · Main chips: (Seiko, TI)
 3.7V cylindrical lithium battery
 · Comply with relevant national standards and requirements for batteries
 The finished battery has been calibrated and tested before leaving the factory, and can be used directly and normally
